Product Details

No. de Modelo.

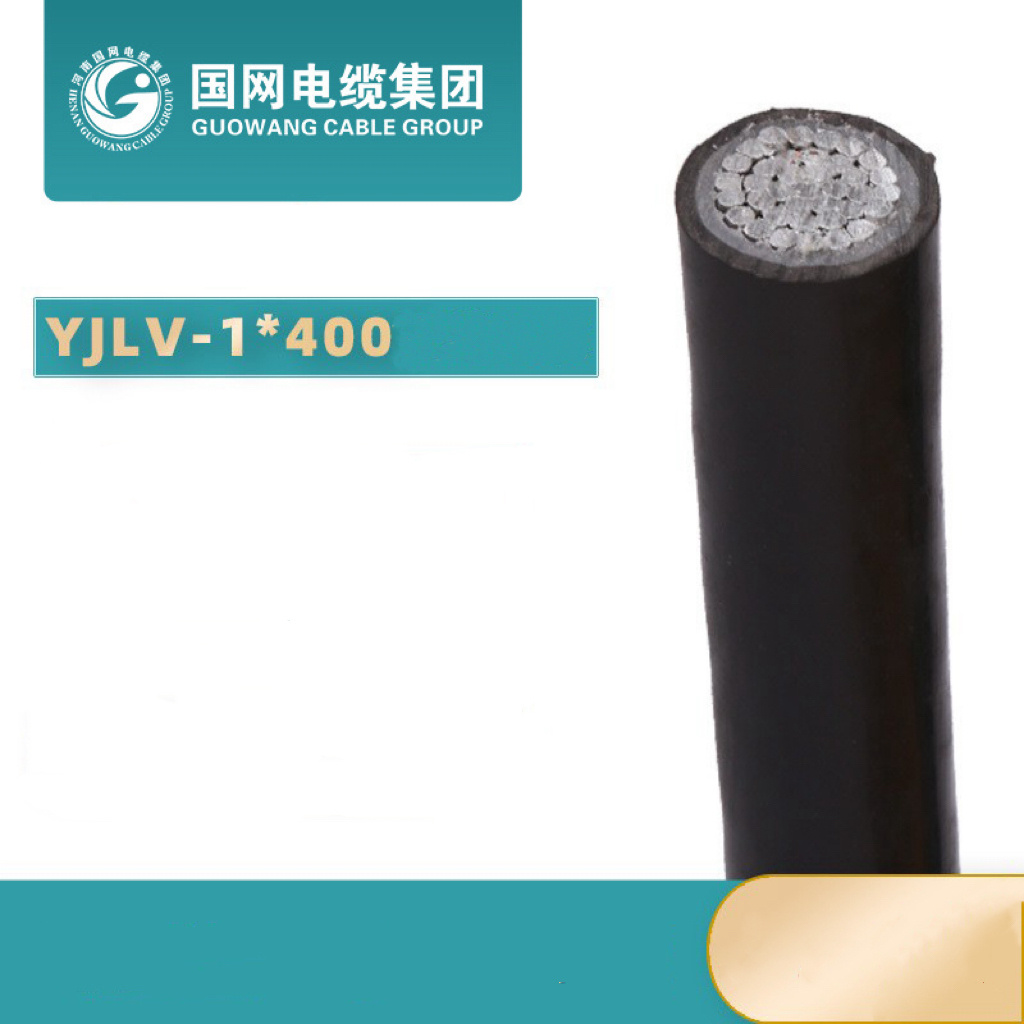

1*400mm2 Yjlv

Corriente

Cable de C.A.

Material de aislamiento

XLPE

Material de la Funda

PVC

Forma Material

Alambre redondo

Alambre Material del núcleo

aluminio

Certificación

ISO, CCC, CE, RoHS

Modelo

yjlv/wdz-yjlv/na2xy

Marca

guowang

muestra

gratis

Paquete de Transporte

tambor de madera/según sus necesidades

Especificación

1.5-300 mm2

Marca Comercial

guowang

Origen

China

Código del HS

8544492100

Capacidad de Producción

7000000

Product Description

Scope of application
System
This product is suitable for transmitting electric energy in power lines with AC 50Hz and rated voltage 0.6/1kV (system maximum voltage 1.2kV).
Occasion
Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.
Product Characteristics
The raw materials for product production are widely sourced and cheap, and are easy to process and manufacture.
The product is insulated with cross-linked polyethylene. Compared with PVC insulated cables, it has better insulation performance and can withstand extremely high working temperatures, up to 90 degrees.
The standard
Executive standard
GB/T 12706.1-2020 Extruded insulated power cables and accessories with rated voltage 1kV (Um=1.2kV) to 35kV (Um=40.5kV) Part 1: Rated voltage 1kV (Um=1.2kV) and 3kV (Um=3.6kV ) )cable
additional standards
Using features
Rated voltage
The rated voltage is 0.6/1kV, and the maximum voltage of the AC system should not exceed 1.2kV.
Operating temperature
The maximum allowable long-term operating temperature of the cable conductor is 90°C; In the case of short circuit, the maximum temperature of the cable conductor shall not exceed 250 ° C and the duration shall not exceed 5s.

ambient temperature
The minimum ambient temperature for cable operation is -15ºC.
Laying temperature
When installing and laying, the temperature should not be lower than 0ºC.
bending radius
The bending radius of single-core cables should be no less than 20 times the outer diameter of the cable, and the bending radius of multi-core cables should be no less than 15 times the outer diameter of the cable.

Rated voltage	No,of CORES	core ×cross secticn (MM)	CONDUCTOR	CORE DIANETER (MM2)	INSULATION THCKNESS (MM)	BELT (MM)	JACKET THICKNESS (MM)	Reference outer diameter (MM)	Reference weight (kg/km)	DC RESISTANCE (Ω/KM)
0.6/1KV	1	1×10	7/1.35	4.1	0.7	20×0.20	1.4	8.9	89.7	3.08
	1	1×16	7/1.66	5.0	0.7	20×0.20	1.4	9.9	112.9	1.91
	1	1×25	7/2.14	6.4	0.9	20×0.20	1.4	11.6	159.9	1.2
	1	1×35	7/2.52	7.6	0.9	25×0.20	1.4	12.8	198.2	0.868
	1	1×50	10/2.52	8.4	1.0	25×0.20	1.4	13.8	245	0.641
	1	1×70	14/2.52	10.0	1.1	30×0.20	1.4	15.6	318.2	0.443
	1	1×95	19/2.52	11.6	1.1	35×0.20	1.5	17.4	411.6	0.32
	1	1×120	24/2.52	13.0	1.2	40×0.20	1.5	19	498.9	0.253
	1	1×150	30/2.52	14.6	1.4	45×0.20	1.6	21.2	617.2	0.206
	1	1×185	37/2.52	16.2	1.6	50×0.20	1.6	23.2	743.4	0.164
	1	1×240	48/2.52	18.5	1.7	55×0.20	1.7	25.9	937.6	0.125
	1	1×300	61/2.52	20.6	1.8	60×0.20	1.8	28.4	1159.2	0.1
	1	1×400	61/2.94	23.3	2.0	60×0.20	1.9	32.2	1480.7	0.0778
	1	1×500	60/3.29	26.6	2.2	60×0.20	2.0	35.6	1864.6	0.0605
	1	1×630	60/3.69	29.6	2.4	60×0.20	2.2	39.4	2322	0.0469
	2	2×10	7/1.35	4.1	0.7	30×0.20	1.8	15.2	225.3	3.08
	2	2×16	7/1.66	5.0	0.7	35×0.20	1.8	17.2	287.9	1.91
	2	2×25	7/2.14	6.4	0.9	40×0.20	1.8	20.6	414.2	1.2
	2	2×35	7/2.52	7.6	0.9	50×0.20	1.8	23	517.4	0.868
	2	2×50	10/2.52	5.7×13.5	1.0	40×0.20	1.8	19.6	483.4	0.641
	2	2×70	14/2.52	7.0×15.6	1.1	45×0.20	1.8	22.6	633.4	0.443
	2	2×95	19/2.52	8.3×18.0	1.1	55×0.20	1.9	25.4	818.8	0.32
	2	2×120	24/2.52	8.9×20.8	1.2	60×0.20	2.0	27.2	1000.4	0.253
	2	2×150	30/2.52	10.0×23.1	1.4	60×0.20	2.2	30.6	1248.9	0.206
	2	2×185	37/2.52	11.1×25.7	1.6	60×0.20	2.3	33.8	1523.3	0.164
	2	2×240	48/2.52	12.5×29.1	1.7	60×0.20	2.5	37.4	1924.2	0.125
	2	2×300	61/2.52	15.0×32.2	1.8	60×0.20	2.6	43	2395.1	0.1
	3	3×10	7/1.35	4.1	0.7	30×0.20	1.8	16.1	266.1	3.08
	3	3×16	7/1.66	5.0	0.7	35×0.20	1.8	18.2	343	1.91
	3	3×25	7/2.14	6.4	0.9	45×0.20	1.8	21.9	503.3	1.2
	3	3×35	7/2.52	7.6	0.9	50×0.20	1.8	24.5	634.9	0.868
	3	3×50	10/2.52	7.0×11.5	1.0	50×0.20	1.8	23.2	678.2	0.641
	3	3×70	14/2.52	8.0×13.7	1.1	55×0.20	1.9	25.9	897.5	0.443
	3	3×95	19/2.52	9.5×15.8	1.1	60×0.20	2.0	29.3	1166.6	0.32
	3	3×120	24/2.52	10.8×18.6	1.2	60×0.20	2.1	32.7	1444.3	0.253
	3	3×150	30/2.52	12.5×20.5	1.4	60×0.20	2.3	37.5	1810.3	0.206
	3	3×185	37/2.52	14.3×23.3	1.6	60×0.20	2.4	42.3	2221.3	0.164
	3	3×240	48/2.52	16.3×26.2	1.7	60×0.20	2.6	47.4	2815.6	0.125
	3	3×300	61/2.52	18.0×29.8	1.8	60×0.20	2.7	51.6	3467.5	0.1
	4	4×10	7/1.35	4.1	0.7	35×0.20	1.8	17.5	318.9	3.08
	4	4×16	7/1.66	5.0	0.7	40×0.20	1.8	19.9	416.4	1.91
	4	4×25	7/2.14	6.4	0.9	50×0.20	1.8	24	617.1	1.2
	4	4×35	7/2.52	7.6	0.9	60×0.20	1.8	26.9	783.2	0.868
	4	4×50	10/2.52	7.5×10.5	1.0	55×0.20	1.8	25.1	857.7	0.641
	4	4×70	14/2.52	9.1×12.5	1.1	60×0.20	2.0	29.5	1167.5	0.443
	4	4×95	19/2.52	11.0×13.3	1.1	60×0.20	2.1	33.8	1524.2	0.32
	4	4×120	24/2.52	12.0×17.0	1.2	60×0.20	2.3	36.9	1894.4	0.253
	4	4×150	30/2.52	13.9×19.7	1.4	60×0.20	2.4	42.1	2351	0.206
	4	4×185	37/2.52	15.2×21.2	1.6	60×0.20	2.6	46.3	2891.3	0.164
	4	4×240	48/2.52	17.3×24.3	1.7	60×0.20	2.8	51.7	3662.7	0.125
	4	4×300	61/2.52	19.5×27.9	1.8	60×0.20	3.0	57.4	4558	0.1
	5	5×10	7/1.35	4.1	0.7	40×0.20	1.8	19.1	378.5	3.08
	5	5×16	7/1.66	5.0	0.7	45×0.20	1.8	21.8	498.1	1.91
	5	5×25	7/2.14	6.4	0.9	55×0.20	1.8	26.3	741.7	1.2
	5	5×35	7/2.52	7.6	0.9	60×0.20	1.8	29.6	947.8	0.868
	5	5×50	10/2.52	4.8×14.2	1.0	60×0.20	1.9	27.4	1049.1	0.641
	5	5×50	10/2.52	8.4	1.0	60×0.20	1.9	27.4	1049.1	0.641
	5	5×70	14/2.52	5.7×16.8	1.1	60×0.20	2.1	31.7	1422.9	0.443
	5	5×70	14/2.52	10.0	1.1	60×0.20	2.1	31.7	1422.9	0.443
	5	5×95	19/2.52	6.7×19.6	1.1	60×0.20	2.2	35.5	1851.5	0.32
	5	5×95	19/2.52	11.6	1.1	60×0.20	2.2	35.5	1851.5	0.32
	5	5×120	24/2.52	7.9×21.9	1.2	60×0.20	2.4	40.2	2319.2	0.253
	5	5×120	24/2.52	13.0	1.2	60×0.20	2.4	40.2	2319.2	0.253
	5	5×150	30/2.52	8.5×24.6	1.4	60×0.20	2.6	44.4	2880.2	0.206
14.6	5	5×150	30/2.52	1.4		60×0.20	2.6	44.4	2880.2	0.206
5	5×185	37/2.52	9.4×27.2	1.6	60×0.20	2.8	49.2	3545.6	0.164
5	5×185	37/2.52	16.2	1.6	60×0.20	2.8	49.2	3545.6	0.164
5	5×240	48/2.52	10.8×31.0	1.7	60×0.20	3.0	55.2	4496.4	0.125
5	5×240	48/2.52	18.5	1.7	60×0.20	3.0	55.2	4496.4	0.125
5	5×300	61/2.52	12.2×34.4	1.8	60×0.20	3.2	61	5591.6	0.1
5	5×300	61/2.52	20.6	1.8	60×0.20	3.2	61	5591.6	0.1
4	3×16+1×10	7/1.66	5.0	0.7	40×0.20	1.8	19.3	392	1.91
4	3×16+1×10	7/1.35	4.1	0.7	40×0.20	1.8	19.3	392	1.91
5	3×16+2×10	7/1.66	5.0	0.7	40×0.20	1.8	20.7	449.4	1.91
		7/1.35	4.1	0.7
		7/1.35	4.1	0.7
4	3×25+1×16	7/2.14	6.4	0.9	50×0.20	1.8	23	566.9	1.2
4	3×25+1×16	7/1.66	5.0	0.7	50×0.20	1.8	23	566.9	1.2
5	3×25+2×16	7/2.14	6.4	0.9	50×0.20	1.8	24.5	642.6	1.2
		7/1.66	5.0	0.7
		7/1.66	5.0	0.7
4	3×35+1×16	7/2.52	7.6	0.9	55×0.20	1.8	25.2	689.5	0.868
4	3×35+1×16	7/1.66	5.0	0.7	55×0.20	1.8	25.2	689.5	0.868
5	3×35+2×16	7/2.52	7.6	0.9	55×0.20	1.8	26.4	759.1	0.868
		7/1.66	5.0	0.7
		7/1.66	5.0	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1.0	55×0.20	1.8	25.5	785.2	0.641
4	3×50+1×25	7/2.16	6.0	0.9	55×0.20	1.8	25.5	785.2	0.641
5	3×50+2×25	10/2.52	5.0×14.3	1.0	55×0.20	1.8	25.1	868	0.641
		7/2.16	6.0	0.9
		7/2.16	6.0	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	60×0.20	1.9	30.3	1052.4	0.443
4	3×70+1×35	7/2.52	7.0	0.9	60×0.20	1.9	30.3	1052.4	0.443
5	3×70+2×35	14/2.52	6.0×16.8	1.1	60×0.20	2.0	28.9	1164.4	0.443
		7/2.52	7.0	0.9
		7/2.52	7.0	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	60×0.20	2.1	34.6	1393.1	0.32
4	3×95+1×50	10/2.52	8.4	1.0	60×0.20	2.1	34.6	1393.1	0.32
5	3×95+2×50	19/2.52	7.2×19.7	1.1	60×0.20	2.1	33	1536.2	0.32
		10/2.52	8.4	1.0
		10/2.52	7.1×11.5	1.0
4	3×120+1×70	24/2.52	11.5×17.3	1.2	60×0.20	2.2	37.1	1726	0.253
4	3×120+1×70	14/2.52	10.0	1.1	60×0.20	2.2	37.1	1726	0.253
5	3×120+2×70	24/2.52	8.0×22.1	1.2	60×0.20	2.3	37.1	1962	0.253
		14/2.52	10.0	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	60×0.20	2.3	42.2	2084.2	0.206
4	3×150+1×70	14/2.52	10.0	1.1	60×0.20	2.3	42.2	2084.2	0.206
5	3×150+2×70	30/2.52	9.1×24.3	1.4	60×0.20	2.4	40.3	2300.1	0.206
		14/2.52	10.0	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	60×0.20	2.5	47.6	2598.8	0.164
4	3×185+1×95	19/2.52	11.6	1.1	60×0.20	2.5	47.6	2598.8	0.164
5	3×185+2×95	37/2.52	10.2×27.2	1.6	60×0.20	2.5	45.1	2863.3	0.164
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	60×0.20	2.6	54.5	3276.8	0.125
4	3×240+1×120	24/2.52	13.0	1.2	60×0.20	2.6	54.5	3276.8	0.125
5	3×240+2×120	48/2.52	11.5×29.2	1.7	60×0.20	2.7	50	3611.4	0.125
		24/2.52	13.0	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	60×0.20	2.8	58.9	4054	0.1
4	3×300+1×150	30/2.52	14.6	1.4	60×0.20	2.8	58.9	4054	0.1
5	3×300+2×150	61/2.52	13.0×33.2	1.8	60×0.20	2.9	55.6	4497.4	0.1
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×16+1×10	7/1.66	5.0	0.7	45×0.20	1.8	21.2	472.7	1.91
5	4×16+1×10	7/1.35	4.1	0.7	45×0.20	1.8	21.2	472.7	1.91
5	4×25+1×16	7/2.14	6.4	0.9	55×0.20	1.8	25.4	692.5	1.2
5	4×25+1×16	7/1.66	5.0	0.7	55×0.20	1.8	25.4	692.5	1.2
5	4×35+1×16	7/2.52	7.6	0.9	60×0.20	1.8	28	853.1	0.868
5	4×35+1×16	7/1.66	5.0	0.7	60×0.20	1.8	28	853.1	0.868
5	4×50+1×25	10/2.52	5.5×13.4	1.0	55×0.20	1.9	26.3	965.4	0.641
5	4×50+1×25	7/2.16	6.0	0.9	55×0.20	1.9	26.3	965.4	0.641
5	4×70+1×35	14/2.52	6.7×15.8	1.1	60×0.20	2.0	30.3	1288.9	0.443
5	4×70+1×35	7/2.52	7.0	0.9	60×0.20	2.0	30.3	1288.9	0.443
5	4×95+1×50	19/2.52	7.7×18.3	1.1	60×0.20	2.2	34.2	1702.1	0.32
5	4×95+1×50	10/2.52	8.4	1.0	60×0.20	2.2	34.2	1702.1	0.32
5	4×120+1×70	24/2.52	9.5×20.8	1.2	60×0.20	2.3	40.1	2151.3	0.253
5	4×120+1×70	14/2.52	10.0	1.1	60×0.20	2.3	40.1	2151.3	0.253
5	4×150+1×70	30/2.52	10.0×22.9	1.4	60×0.20	2.5	42.3	2591.6	0.206
5	4×150+1×70	14/2.52	10.0	1.1	60×0.20	2.5	42.3	2591.6	0.206
5	4×185+1×95	37/2.52	10.8×25.6	1.6	60×0.20	2.6	46.7	3191.5	0.164
5	4×185+1×95	19/2.52	11.6	1.1	60×0.20	2.6	46.7	3191.5	0.164
5	4×240+1×120	48/2.52	12.6×28.9	1.7	60×0.20	2.9	52.6	4067.9	0.125
5	4×240+1×120	24/2.52	13.0	1.2	60×0.20	2.9	52.6	4067.9	0.125
5	4×300+1×150	61/2.52	13.8×32.2	1.8	60×0.20	3.1	57.6	5050.2	0.1
5	4×300+1×150	30/2.52	14.6	1.4	60×0.20	3.1	57.6	5050.2	0.1

Nosotros somos China Cable de potencia con conductor de cobre y aluminio aislado con XLPE y revestido de PVC LSZH Tipo de un solo núcleo U1000 R2V RO2V Rvfv Wdz-Yjlv Yjlv fabricante y proveedor,Puede obtener más detalles con el correo electrónico, obtendrá un precio económico o un precio de fábrica.
