Cable de caída de servicio dúplex de alta calidad Collie con aislamiento XLPE, cable aéreo ABC limitado

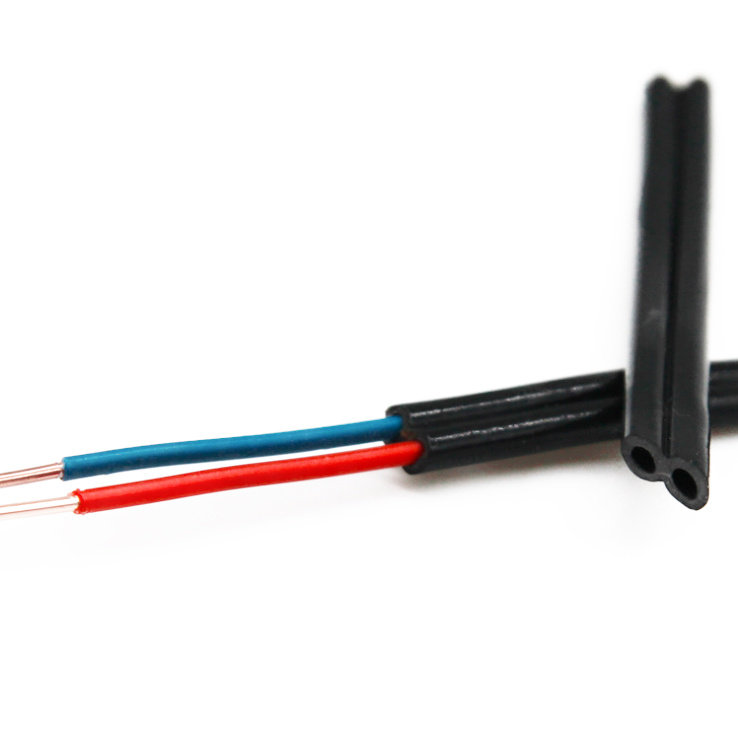

Cable de caída de servicio dúplex de alta calidad Collie con aislamiento XLPE, cable aéreo ABC limitado image

Get Latest Price Request a quote

Product Details

No. de Modelo.

Collie

Aplicación

Aéreo

Material del conductor

Aluminio

Material de la Funda

ninguno

Material de aislamiento

XLPE

Forma Material

Alambre redondo

Rango de Aplicación

transmisión de potencia aérea

Certificación

Marca

vínculo de zoom

muestras

gratis

oem, odm

está bien

modelo no

cable abc bs estándar

color

negro, rojo u otros

especificaciones técnicas

6awg,4awg,2awg,1awg,1/0awg

logotipo

de acuerdo a sus necesidades

tipo de modelo

cable abc 1*6awg+1*6awg

estándares

gb, iec, astm, bs, din o como su solicitud

tensión nominal

600V

fábrica o no

fábrica

ventajas

alta calidad, precio competitivo, entrega rápida

número de cables

sólido, dulplex, triplex, cuadruplex

Paquete de Transporte

bidón o rollos de madera exportados

Especificación

cable abc 1*6awg+1*6awg

Marca Comercial

zml

Origen

China

Código del HS

8544692100

Capacidad de Producción

10000 por día

Product Description

High Quality Duplex Service Drop Cable Collie XLPE Insulated Aerial Bounded ABC Cable

Applications
Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.
Standards
We could produce the cable according to many standards: ICEA S-76-474,
ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC
we will do our best to meet your requirements
Specification

Phase conductor: Aluminum wire, 1350-H19
Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced
The material of insulation: XLPE,PE,PVC
The Voltage: 600V-2200V

Duplex Service Drop—Aluminum Conductor

^{_{*APPLICATIONS:}}

_{^{Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.}}

^{_{Nominal cross section}}	^{_{Neutral core}}			^{_{Phase core}}			^{_{weight (kg/km)}}	^{_{Allowable ampacity (A)}}
	^_AAC		^_LBS	^_AAC		^{_{Insulation thickness (mm)}}		^_XLPE	^_PE
	^_NO	^{_{diameter (mm)}}	^_LBS	^_NO	^{_{diameter (mm)}}	^{_{Insulation thickness (mm)}}		^_XLPE	^_PE
^{_{16AWG+16AWG}}	^₇	^_1.56	^₅₆₃	^₁	^_4.11	^_1.14	^₉₂	^₈₅	^₇₀
^{_{16AWG+16AWG}}	^₇	^_1.56	^₅₆₃	^₇	^_1.56	^_1.14	^₉₄	^₈₅	^₇₀
^{_{14AWG+14AWG}}	^₇	^_1.96	^₈₈₁	^₁	^_5.19	^_1.14	^₁₃₉	^₁₁₅	^₉₀
^{_{14AWG+14AWG}}	^₇	^_1.96	^₈₈₁	^₇	^_1.96	^_1.14	^₁₄₁	^₁₁₅	^₉₀
^{_{12AWG+12AWG}}	^₇	^_2.47	^₁₃₅₀	^₇	^_2.47	^_1.14	^₂₁₆	^₁₅₀	^₁₂₀
^{_{11/0AWG+11/0AWG}}	^₇	^_3.12	^₁₉₉₀	^₁₉	^_1.89	^_1.52	^₃₄₇	^₂₀₅	^₁₆₀

^{_{Triplex Service Drop—Aluminum Conductor}}

^{_{*APPLICATIONS:}}
_{^{Used to supply power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made.}}

^{_{AWG or kcmil}}	^{_{Bare Neutral Messenger}}			^{_{Phase Conductor}}			^{_{Weight kg/km}}	^{_{Allowable Ampacities(A)}}
	^_AAC		^{_{Rated Strength lbs.}}	^_AAC		^{_{Insul. Thick. mm}}		^_XLPE	^_PE
	^_NO.	^_Dia.mm	^{_{Rated Strength lbs.}}	^_NO.	^_Dia.mm	^{_{Insul. Thick. mm}}		^_XLPE	^_PE
^{_{26AWG+16AWG}}	^₇	^_1.56	^₅₆₃	^₁	^_4.11	^_1.14	^₁₄₆	^₈₅	^₇₀
^{_{26AWG+16AWG}}	^₇	^_1.56	^₅₆₃	^₇	^_1.56	^_1.14	^₁₅₀	^₈₅	^₇₀
^{_{24AWG+14AWG}}	^₇	^_1.96	^₈₈₁	^₁	^_5.19	^_1.14	^₂₁₉	^₁₁₅	^₉₀
^{_{24AWG+14AWG}}	^₇	^_1.96	^₈₈₁	^₇	^_1.96	^_1.14	^₂₂₄	^₁₁₅	^₉₀
^{_{22AWG+12AWG}}	^₇	^_2.47	^₁₃₅₀	^₇	^_2.47	^_1.14	^₃₃₈	^₁₅₀	^₁₂₀
^{_{21/0AWG+11/0AWG}}	^₇	^_3.12	^₁₉₉₀	^₇	^_3.12	^_1.52	^₅₄₄	^₂₀₅	^₁₆₀
^{_{21/0AWG+11/0AWG}}	^₇	^_3.12	^₁₉₉₀	^₁₉	^_1.89	^_1.52	^₅₄₅	^₂₀₅	^₁₆₀
^{_{22/0AWG+l2/0AWG}}	^₇	^_3.5	^₂₅₁₀	^₇	^_3.5	^_1.52	^₆₇₁	^₂₃₅	^₁₈₅
^{_{23/0AWG+l3/0AWG}}	^₁₉	^_2.39	^₃₃₁₀	^₁₉	^_2.39	^_1.52	^₈₃₀	^₂₇₅	^₂₁₅
^{_{24/0AWG+l4/0AWG}}	^₁₉	^_3.25	^₄₀₂₀	^₁₉	^_3.25	^_1.52	^₁₄₇₆	^₃₁₅	^₂₄₅
^{_{2336.4+1336.4}}	^₁₉	^_3.38	^₆₁₄₆	^₁₉	^_3.38	^_2.03	^₁₆₄₉	^₄₂₀	^₃₂₅

^{_{Quadruplex Service Drop—Aluminum Conductor}}
^{_{*APPLICATIONS:}}
^{_{Used to supply 3-phase power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made.}}

^{_{AWG or kcmil}}	^{_{Bare Neutral Messenger}}			^{_{Phase Conductor}}			^{_{Weight kg/km}}	^{_{Allowable Ampacities(A)}}
	^_ACSR		^{_{Rated Strength lbs.}}	^_AAC		^{_{Insul. Thick. mm}}		^_XLPE	^_PE
	^_No.	^{_{Dia. mm}}	^{_{Rated Strength lbs.}}	^_No.	^{_{Dia. mm}}	^{_{Insul. Thick. mm}}		^_XLPE	^_PE
^{_{36AWG+16AWG}}	^_1,6	^_1.68	^₁₁₉₀	^₁	^_4.11	^_1.14	^₂₂₁	^₇₅	^₆₀
^{_{36AWG+16AWG}}	^_1,6	^_1.68	^₁₁₉₀	^₇	^_1.56	^_1.14	^₂₂₇	^₇₅	^₆₀
^{_{34AWG+14AWG}}	^_1,6	^_2.12	^₁₈₆₀	^₁	^_5.19	^_1.14	^₃₃₁	^₁₀₀	^₈₀
^{_{34AWG+14AWG}}	^_1,6	^_2.12	^₁₈₆₀	^₇	^_1.96	^_1.14	^₃₃₈	^₁₀₀	^₈₀
^{_{32AWG+12AWG}}	^_1,6	^_2.67	^₂₈₅₀	^₇	^_2.47	^_1.14	^₅₁₁	^₁₃₅	^₁₀₅
^{_{31/0AWG+11/0AWG}}	^_1,6	^_3.37	^₄₃₈₀	^₁₉	^_1.89	^_1.52	^₈₂₄	^₁₈₀	^₁₄₀
^{_{32/0AWG+l2/0AWG}}	^_1,6	^_3.78	^₅₃₁₀	^₁₉	^_2.13	^_1.52	^₁₀₁₅	^₂₀₅	^₁₆₀
^{_{33/0AWG+l3/0AWG}}	^_1,6	^_4.25	^₆₆₂₀	^₁₉	^_2.39	^_1.52	^₁₂₅₄	^₂₃₅	^₁₈₅
^{_{34/0AWG+l4/0AWG}}	^_1,6	^_4.77	^₈₃₅₀	^₁₉	^_2.68	^_1.52	^₁₅₅₄	^₂₇₅	^₂₁₀
^{_{3336.4+1336.4}}	^_1,18	^_3.47	^₈₆₈₀	^₁₉	^_3.38	^_2.03	^₂₃₂₁	^₃₇₀	^₂₈₀
^{_{3336.4+l4/0AWG}}	^_1,6	^_4.77	^₈₃₅₀	^₁₉	^_3.38	^_2.03	^₂₂₂₁	^₃₇₀	^₂₈₀

* Advanced production and testing equipment.
* Strict controlling of raw materials.
* Raw material origin, factory direct sales, competitive price.
* Inquiry and consulting support.
* Free sample and sample testing support.
* Fast delivery.
* Good pre-sale and after-sale services

Nosotros somos China Cable de caída de servicio dúplex de alta calidad Collie con aislamiento XLPE, cable aéreo ABC limitado fabricante y proveedor,Puede obtener más detalles con el correo electrónico, obtendrá un precio económico o un precio de fábrica.
